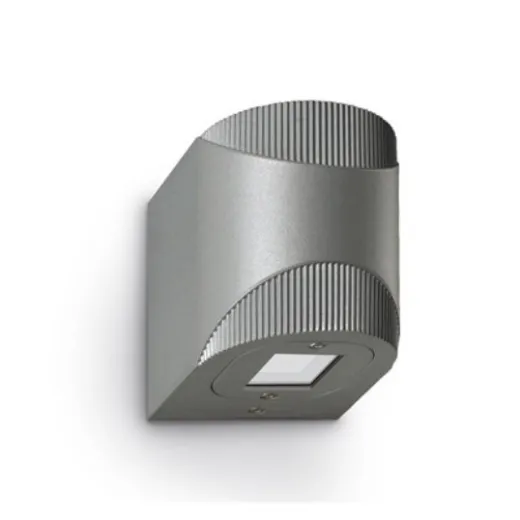

Wandleuchte Miniten LED 2x390lm 2x3W 3000K IP66
Art.Nr.: 10531243
Architectural fitting for up-down lighting, uses high efficiency LEDs. It features a high protection rating and a special surface pre-treatment. It is therefore particularly suitable and resistant for outdoor applications. The wall-frame allows an easy installation and wiring. IP66.
|
PRODUCT CODE |
COLOR |
|
10531243 |
Silver |
|
GENERAL SPECIFICATIONS |
|
|
Product Type |
Wall-bracket |
|
Mounting Type |
Wall - surface |
|
Indoor/Outdoor Lights |
Outdoor |
|
Applications |
Arcades,Display areas,Façades of buildings,Shopping centres,Walkways |
|
LIGHTING SPECIFICATIONS |
|
|
Lamp Description |
LED 2x390lm 2x3W 3000K |
|
Nominal Lumens On Thermal Regime (Lm) |
390 |
|
Efficiency L.O.R. (%) |
73,6 |
|
Delivered Lumens (Lm) |
287 |
|
Lamp Wattage (W) |
3 |
|
Color Temperature (K) |
3000 |
|
Average Lamp Life (H) |
L80B10 50.000 |
|
Photobiological Risk Group |
RG1 |
|
Number Of Lamps |
2 |
|
PHYSICAL SPECIFICATIONS |
|
|
Body |
Die-cast aluminium |
|
Finishes |
Metal paint with a special anti-oxidising treatment |
|
Closing Screen |
Tempered 3mm, shockproof and heat resistant |
|
Frame |
Die-cast aluminium |
|
Gaskets |
Silicone |
|
Screws |
Stainless steel |
|
ELECTRICAL SPECIFICATIONS |
|
|
Driver |
Included |
|
Driver Mounting |
Integrated |
|
Cable Gland |
Nickel-plated brass cable gland M12x1, 5 |
|
Voltage (V) |
230/240 |
|
Frequency (Hz) |
50/60 |
|
WEIGHT AND DIMENSIONS |
|
|
Length (Mm) |
125 |
|
Width (Mm) |
90 |
|
Weight (Kg) |
1 |
|
OPTICAL SPECIFICATIONS |
|
|
Aiming |
Fixed |
|

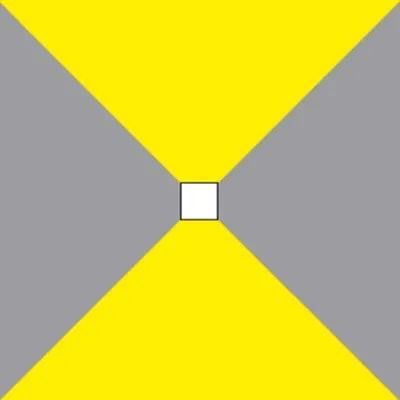

Light Distribution |
Symmetric |
|
Light Emission |
Bi-directional |
|
Light Beam |
60/60 |
Die folgende Miniten Deckenleuchte gehört zur gleicher Designerlinie:
