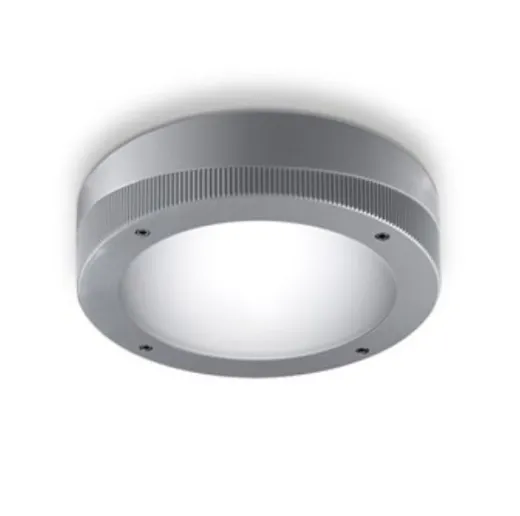

Aufbauleuchte Miniten TB 300 LED 1700lm 12W 3000K IP66
Art.Nr.: 185103
TB 300 is a registered design model.
|
PRODUCT CODE |
COLOR |
|
185103 |
Silver, on demand |
|
185104 |
White, on demand |
|
GENERAL SPECIFICATIONS |
|
|
Product Type |
Ceiling lights,Wall-bracket |
|
Mounting Type |
Ceiling - surface,Wall - surface |
|
Indoor/Outdoor Lights |
Outdoor |
|

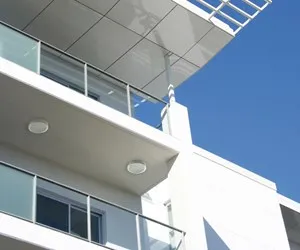

Applications |
Arcades,Entrances,Halls,Terraces |
|
LIGHTING SPECIFICATIONS |
|
|
Lamp Description |
LED 1700lm 12W 3000K CRI85 |
|
Nominal Lumens On Thermal Regime (Lm) |
1700 |
|
Efficiency L.O.R. (%) |
70 |
|
Delivered Lumens (Lm) |
1190 |
|
Lamp Wattage (W) |
12 |
|
Color Temperature (K) |
3000 |
|
Average Lamp Life (H) |
L80B10 50.000 |
|
Photobiological Risk Group |
RG1 |
|
PHYSICAL SPECIFICATIONS |
|
|
Body |
Die-cast aluminium |
|
Finishes |
Polyester painted, with a special antioxidising pretreatment,Polyester painted |
|
Closing Screen |
Extra clear tempered (8 mm.) safety glass, bevel-grinded and acid-etched on both sides |
|
Screws |
Stainless steel |
|
ELECTRICAL SPECIFICATIONS |
|
|
Glow Wire (°C) |
850 |
|
Driver |
Included |
|
Driver Mounting |
Integrated |
|
Cable Gland |
PG9 |
|
Voltage (V) |
220/240 |
|
Frequency (Hz) |
50/60 |
|

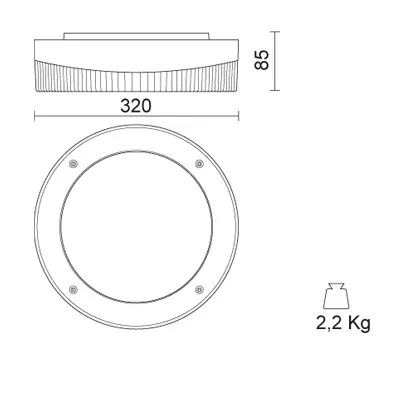

WEIGHT AND DIMENSIONS |
|
|
Shape |
Round |
|
External Diameter (Mm) |
320 |
|
Height (Mm) |
85 |
|
Weight (Kg) |
2.2 |
|

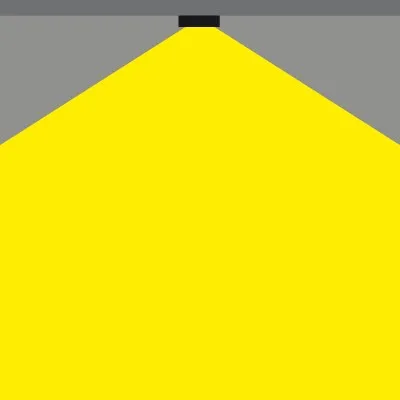

OPTICAL SPECIFICATIONS |
|
|
Aiming |
Fixed |
|
Light Distribution |
Symmetric |
|
Light Emission |
Direct |
|
Light Beam |
120° |
