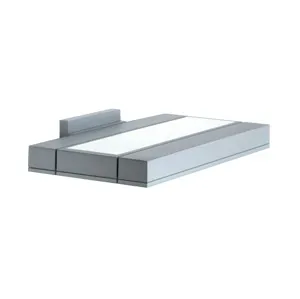

Wandleuchte Wall Line, IP40, 3000K, 2600lm

Art.Nr.: WallLine



Product code Color

Mat white

Silver



General specifications

Product type: Wall-bracket

Mounting type: Wall-bracket

Description: Wall Line is a wall bracket for indirect lighting, for LED sources of

the last generation, that combine high power and low energy

consumption. Uniform light distribution, high visual comfort and

passive heat dissipation. Body and bracket in die-cast aluminium.

Diffuser in opal polycarbonate.

Indoor/outdoor lights: Indoor

Applications: Accommodation facilities, Corridors, Entrances, Halls, Public and

domestic spaces



Lighting specifications

Lamps description: LED 2600lm 30W 3000K

Nominal lumens on thermal regime: 2600

Efficiency L.O.R. (%): 82,0

Delivered lumens(lm): 2131

Lamp wattage (W): 30

Color temperature (K): 3000



Physical specifications

Body: Die-cast aluminium

Finishes: Polyester painted

Thermal Dissipation: Passive



Electrical specifications

Driver availability: Included

Driver mounting: Integrated

Voltage (V): 230/240

Frequency (Hz): 50/60



Weight and dimensions

Shape: Rectangular

Length (mm): 350

Width (mm): 205

Height (mm): 59

Weight (Kg): 1.5



Optical specifications

Light distribution: Symmetric

Light emission: Indirect

Light beam (°): 110°



Datenblatt
