Wandleuchte Bali, IP40, 3000K, 1800lm

Art.Nr.: Bali

Erhältlich in weiss oder in grau.





Product code Color

Mat white

Mat grey



General specifications

Product type: Wall-bracket

Mounting type: Wall - surface

Description: Bali is a wall luminaire for the new 1800lm high-efficiency COB

LEDs. The closing screen is in clear thermoplastic material for a

brighter look. Textured thermoplastic cover. It rotates through

350°.

Notes: Bracket in die-cast aluminium, polyester painted.

Indoor/outdoor lights: Indoor

Applications: Corridors, Public and domestic spaces



Lighting specifications

Lamps description: LED 1500lm 12W 3000K

Nominal lumens on thermal regime: 1800

Efficiency L.O.R. (%): 83

Delivered lumens(lm): 1545

Lamp wattage (W): 12

Color temperature (K): 3000



Physical specifications

Body: Die-cast aluminium

Finishes: Polyester painted

Reflector: Mirror-metallized thermoplastic material

Closing Screen: Clear high resistant thermoplastic material.

Thermal Dissipation: Passive



Electrical specifications

Driver availability: Included

Driver mounting: Integrated

Voltage (V): 230/240

Frequency (Hz): 50/60

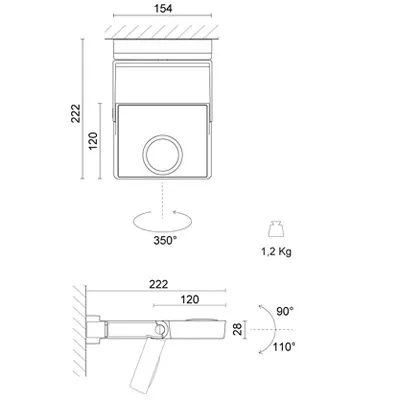

Weight and dimensions

Length (mm): 222

Width (mm): 28

Height (mm): 154

Weight (Kg): 1.2



Optical specifications

Light distribution: Symmetric

Light emission: Direct

Light beam (°): 30° / 50°

Horizontal orientation: 350°

Vertical tilt: 200°
